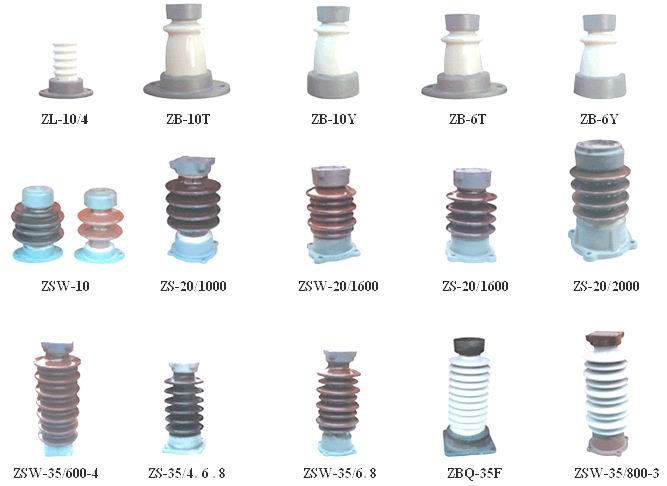

柱式绝缘子
 |
型号 | 主要尺寸/mm | 重量/kg | |||||||||||||
H | D | h1 | h2 | h3 | h4 | h5 | d1 | d2 | d3 | d4 | d5 | a1 | a2 | ||
ZA-6Y | 165 | 86 | 27 | 36 | 6 | 13 | 20 | 65 | 106 | 2-M6 | M10 | M12 | 36 | - | 2.38 |
ZA-6T | 165 | 86 | 27 | 36 | 6 | 13 | 10 | 62 | 110 | 2-M6 | M10 | 2-φ12 | 36 | 135 | 2.56 |
ZB-6Y | 185 | 106 | 48 | 48 | 7 | 18 | 22 | 82 | 133 | 2-M10 | M16 | M16 | 46 | - | 4.7 |
ZB-6T | 185 | 106 | 48 | 48 | 7 | 18 | 12 | 82 | 135 | 2-M10 | M16 | 2-φ15 | 46 | 175 | 5.2 |
ZA-10Y | 190 | 86 | 36 | 36 | 6 | 13 | 20 | 66 | 110 | 2-M6 | M10 | M12 | 36 | - | 2.5 |
ZA-10Y | 190 | 86 | 36 | 36 | 6 | 13 | 10 | 66 | 110 | 2-M6 | M10 | 2-φ12 | 36 | 135 | 2.7 |
ZB-10Y | 215 | 106 | 48 | 48 | 7 | 18 | 22 | 82 | 133 | 2-M10 | M16 | M-16 | 46 | - | 5.1 |
型号 | 额定电压KV | 工频电压/KVpear不小于 | 全波冲击耐受电压KV/不小于 | 抗弯及抗压破坏负荷KN/不小于 | |
干耐受 | 击穿 | ||||
ZA-6Y | 6 | 36 | 58 | 60 | 3.75 |
ZA-6T | 6 | 36 | 58 | 60 | 3.75 |
ZB-6Y | 6 | 36 | 58 | 60 | 7.5 |
ZB-6T | 6 | 36 | 58 | 60 | 7.5 |
ZA-10Y | 10 | 47 | 75 | 80 | 3.75 |
ZA-10T | 10 | 47 | 75 | 80 | 3.75 |
ZB-10Y | 10 | 47 | 75 | 80 | 7.5 |
