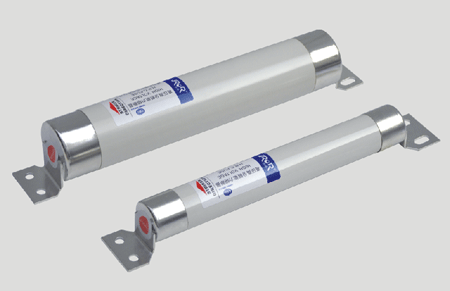

| 基本数据 |
| 型号 | 额定电压(KV) | 熔体额定电流(A) | 额定开断电流
(KA) | 外形尺寸
(mm) | (图1) | 重量
(Kg) | | 国外 | 部颁 | | ADFH | XRNT1 | 3.6 | 6.3 10 16 20 31.5 40 | 31.5 | 51 | 254 | 1.5 | | ADGH | XRNT1 | 3.6 | 6.3 10 16 20 31.5 40 50 63 80 100 | 31.5 | 51 | 359 | 2.0 | | ADFH | XRNT1 | 7.2 | 6.3 10 16 20 31.5 40 50 63 | 20 | 51 | 254 | 1.5 | | AFFH | XRNT1 | 7.2 | 80 100 | 31.5 | 76 | 254 | 2.3 | | BDGH | XRNT1 | 7.2 | 6.3 10 16 20 31.5 40 50 63 80 | 31.5 | 51 | 359 | 2.0 | | BFGH | XRNT1 | 7.2 | 90 100 125 140 160 | 31.5 | 76 | 359 | 4.0 | | ADFH | XRNT1 | 12 | 6.3 10 16 20 25 31.5 | 12 | 51 | 245 | 1.5 | | BDGH | XRNT1 | 12 | 6.3 10 16 20 25 31.5 40 45 50 | 31.5 | 51 | 359 | 2.0 | | BFGH | XRNT1 | 12 | 56 63 71 80 90 100 | 31.5 | 76 | 359 | 4.0 | | AKGH | XRNT1 | 12 | 112 125 | 31.5 | 76 | 359 | 4.0 | | ADIH | XRNT1 | 24 | 6.3 10 16 20 25 31.5 | 12 | 51 | 565 | 3.0 | | AFIH | XRNT1 | 24 | 40 50 63 80 90 | 16 | 76 | 565 | 6.1 | | ADIH | XRNT1 | 40.5 | 3.15 5 6.3 10 16 20 25 31.5 | 16 | 51 | 565 | 3.0 | | AFIH | XRNT1 | 40.5 | 40 | 25 | 76 | 565 | 6.1 | | AFKH | XRNT1 | 40.5 | 50 63 71 | 25 | 76 | 914 | 9.7 |
|
| 注：在规定的使用条件下，熔断器最小开断电流为熔断器额定的2.5～3倍。 |
| |
| A/B型变压器保护用高分断能力高压限流熔断器与变压器保护配套 |
| 变压器容量 | 变压器初级电压 6.6KV | 变压器初级电压 10KV | | 熔断器型号 | 额定电流A | 熔断器型号 | 额定电流A | | 200 | BDGH-12KV | 31.5 | BDGH-12KV | 20 | | 250 | BDGH-12KV | 40 | BDGH-12KV | 25 | | 300/315 | BDGH-12KV | 50 | BDGH-12KV | 31.5 | | 400 | BDGH-12KV | 63 | BDGH-12KV | 40 | | 500 | BDGH-12KV | 80 | BDGH-12KV | 50 | | 630 | BDGH-12KV | 100 | BDGH-12KV | 63 | | 750/800 | BDGH-7.2KV | 125 | BDGH-12KV | 71 | | 1000 | BDGH-7.2KV | 140 | BDGH-12KV | 90 | | 1250 | BDGH-7.2KV | 160 | AKGH-12KV | 112 | | 1500/1600 | BDGH-7.2KV | 160 | AKGH-12KV | 125 |
|
| |
| 外形及安装尺寸 |
|
